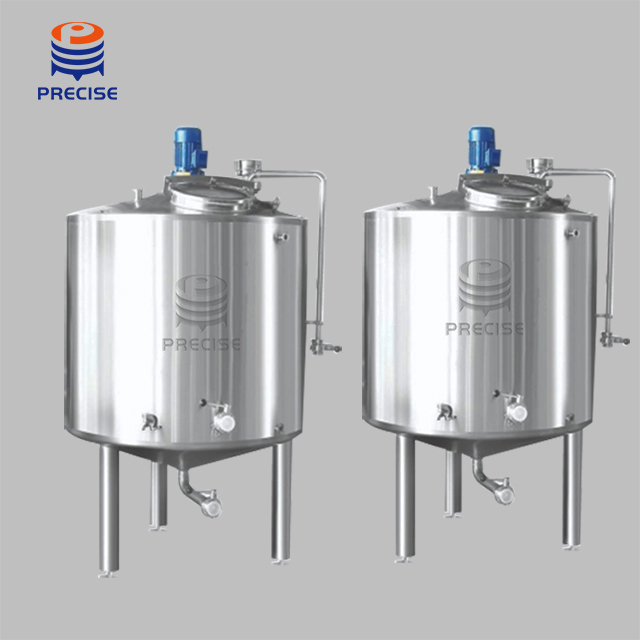

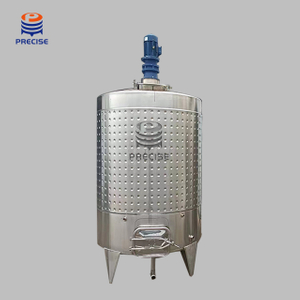

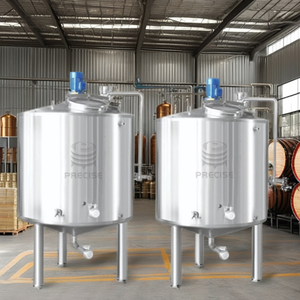

Stainless Steel Mixing Tank

Stainless steel mixing tank is widely used in Food beverage, The tank can be made of stainless steel 304L or 316L according to requirements of users' products, also heating and cooling jackets are optional to meet different needs of production and process. Reasonable structure design, Advanced technology and Durable, Simple operation and Convenient use.

Availability:

Quantity:



Inquire

Model:
PTMT
Brand:
Precise

Product Description

This Stainless Steel Mixing Tank is mainly used for juice mix, but also can be used for other liquid mixing, such as dairy products, drinks, etc., cooling jacket or heat jacket can be added, insulaition can be laid on the tank shell according to customer requirements.

https://www.youtube.com/watch?v=jw1InAAqGp4

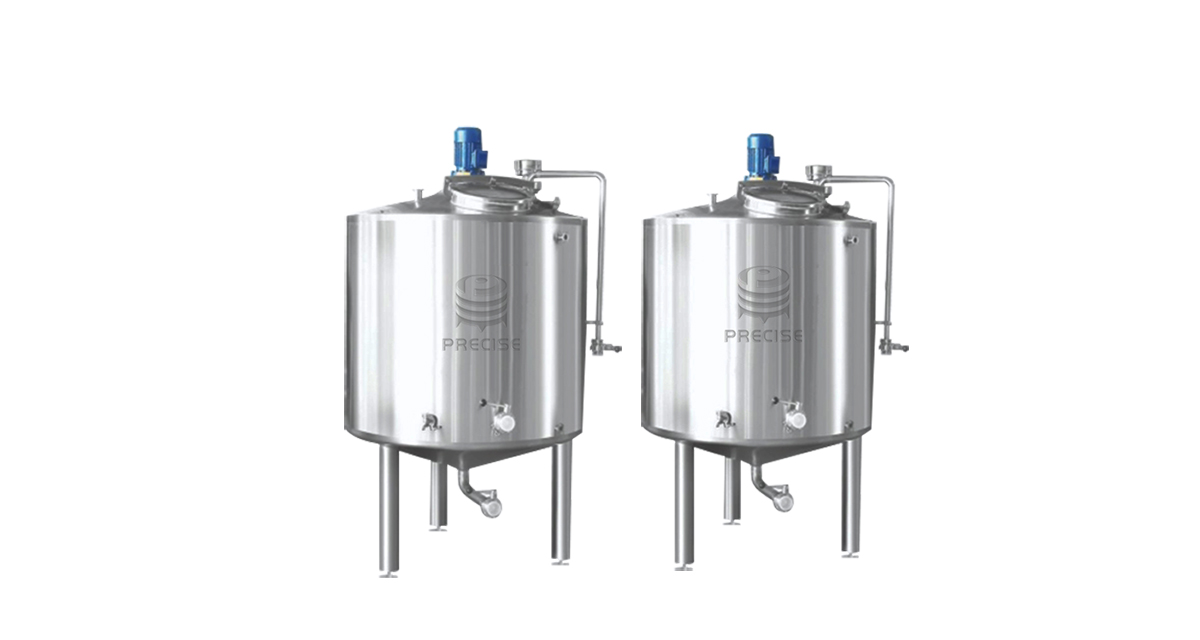

搅拌罐新图

Features:

*Material: SS304 /SS316

*Surface: Inner 2B, outside brushed oil, all welds are passivated and polished; inside welds are ground. Polished is optional.

* Sanitary, easy cleaning, low-cost maintenance.

* Cooling jacket or heat jacket can be added.

* Mixer can be installed on the top or side.

* Customization is available.

Configuration:

Cylindrical shell/Conical top/Conical bottom/Supporting legs (adjustable feet optional)

Top round manhole/Dimple cooling jacket (cooling coil)/CIP

Inlet/outlet/Drain outlet/Thermometer/Breathing valve/Sampling valve

Level gauge/Motor and gear box/Top or side agitator

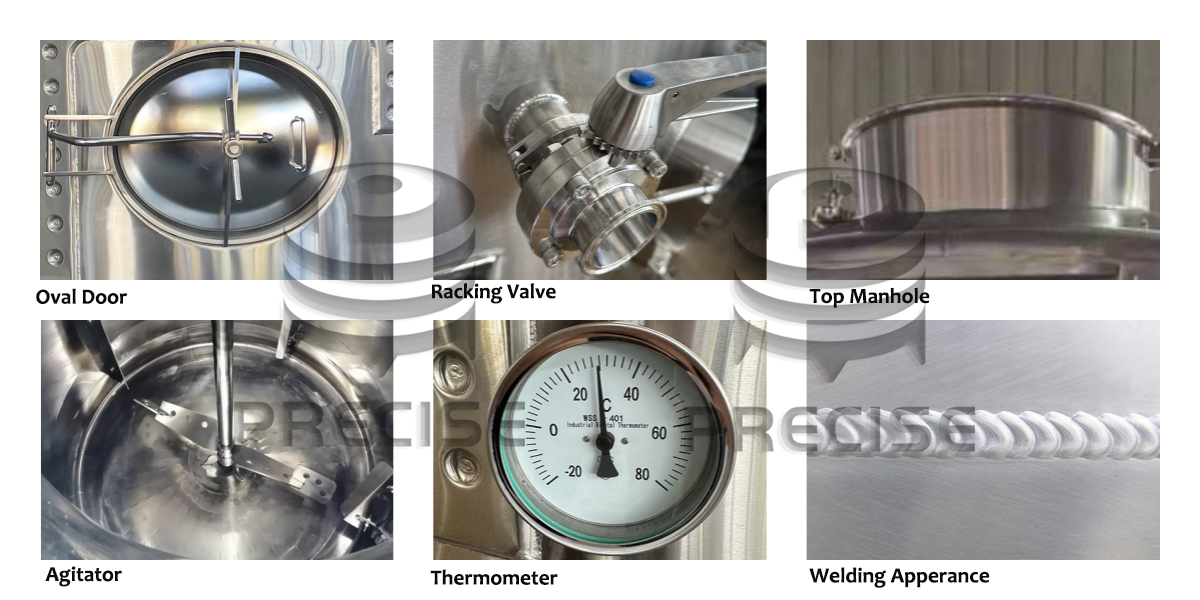

搅拌罐带LOGO

Model	Volume	ID(mm)	Shell H(mm)	Total H(mm)
PMT2.5	2500L	1310	1830	3160
PMT5	5000L	1780	2000	3200
PMT10	10000L	2030	3000	4235
PMT15	15000L	2200	3940	5150
PMT20	20000L	2250	5000	7100
PMT600G	600Gallon	1320	1830	3175
PMT1300G	13000 Gallon	1778	2000	3300
PMT2500G	2500Gallon	2032	3000	4241
PMT4000G	40000Gallon	2210	5000	6096
