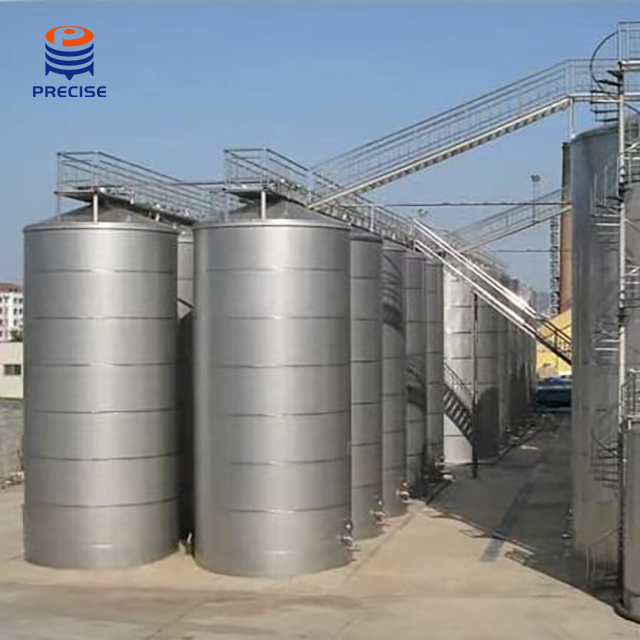

Stainless Steel Edible Oil Storage Tank

This Stainless Steel Edible Oil Tank is mainly used for Edible oil storage, but also can be used in other liquid storage tanks, such as olive oil, dairy products, drinks, etc., cooling jacket or heat jacket, insulaition can be laid on the tank shell according to customer requirements, Mixer can be also installed.

Availability:

Quantity:



Inquire

Product Description

Stainless Steel Edible oil tank

https://www.youtube.com/watch?v=ZkXKP6KSOM4

*Material: SS304 /SS316

*Surface: Inner 2B, outside brushed oil, all welds are passivated and polished; inside welds are ground. Polished is optional

*Structure：Cone/Cylinder Shell/Conical or slope bottom/Adjustable legs

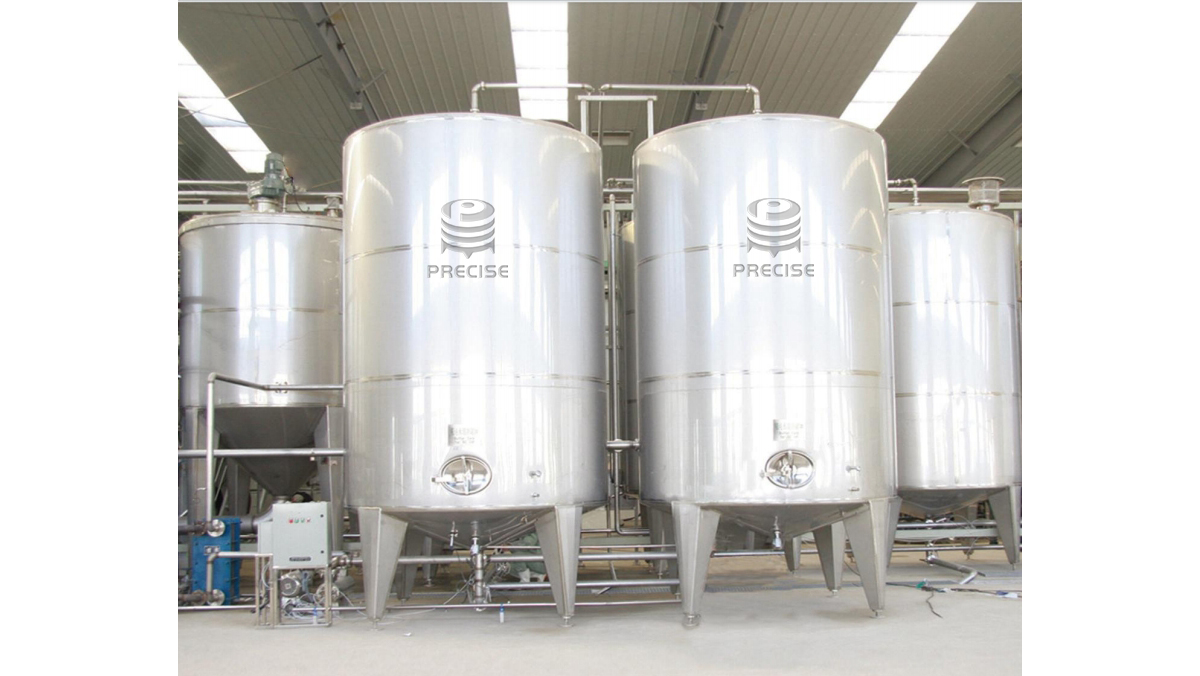

果汁罐

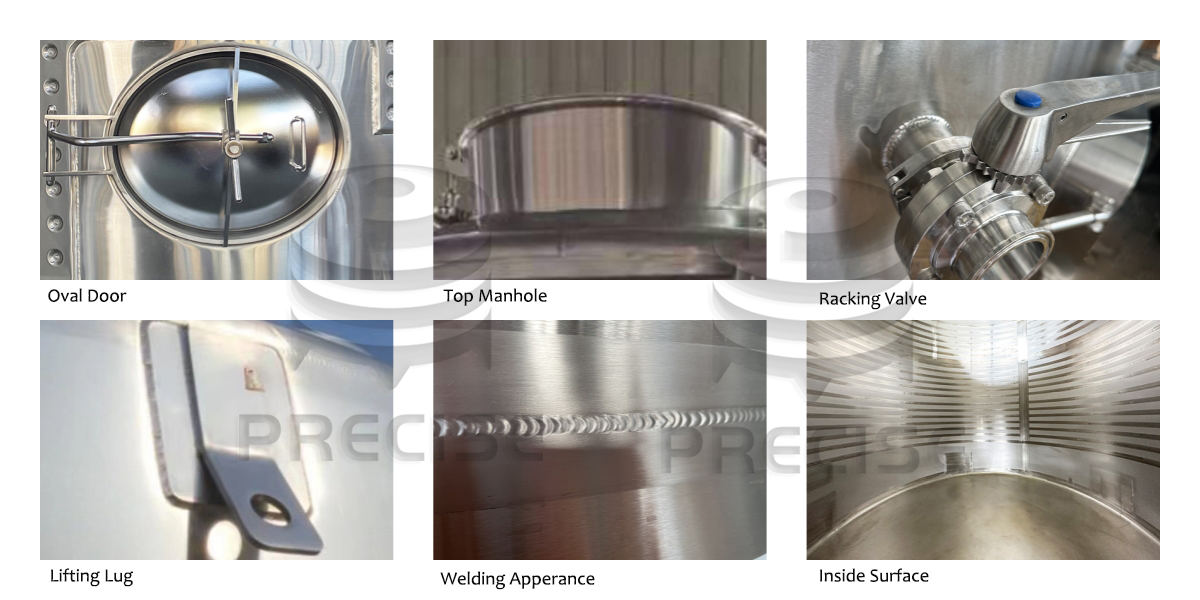

*Configuration:
●Top manhole	●Side oval manhole	● Breathe valve
●Sample valve	●Thermometer	●Drain valve
●Racking valve	●Support ladder	●Lifting lugs
●Level gauge

Model	Volume	ID(mm)	Shell H(mm)	Total H(mm)
PEOT2.5	2500L	1310	1830	3160
PEOT5	5000L	1780	2000	3200
PEOT10	10000L	2030	3000	4235
PEOT15	15000L	2200	3940	5150
PEOT20	20000L	2250	5000	7100
