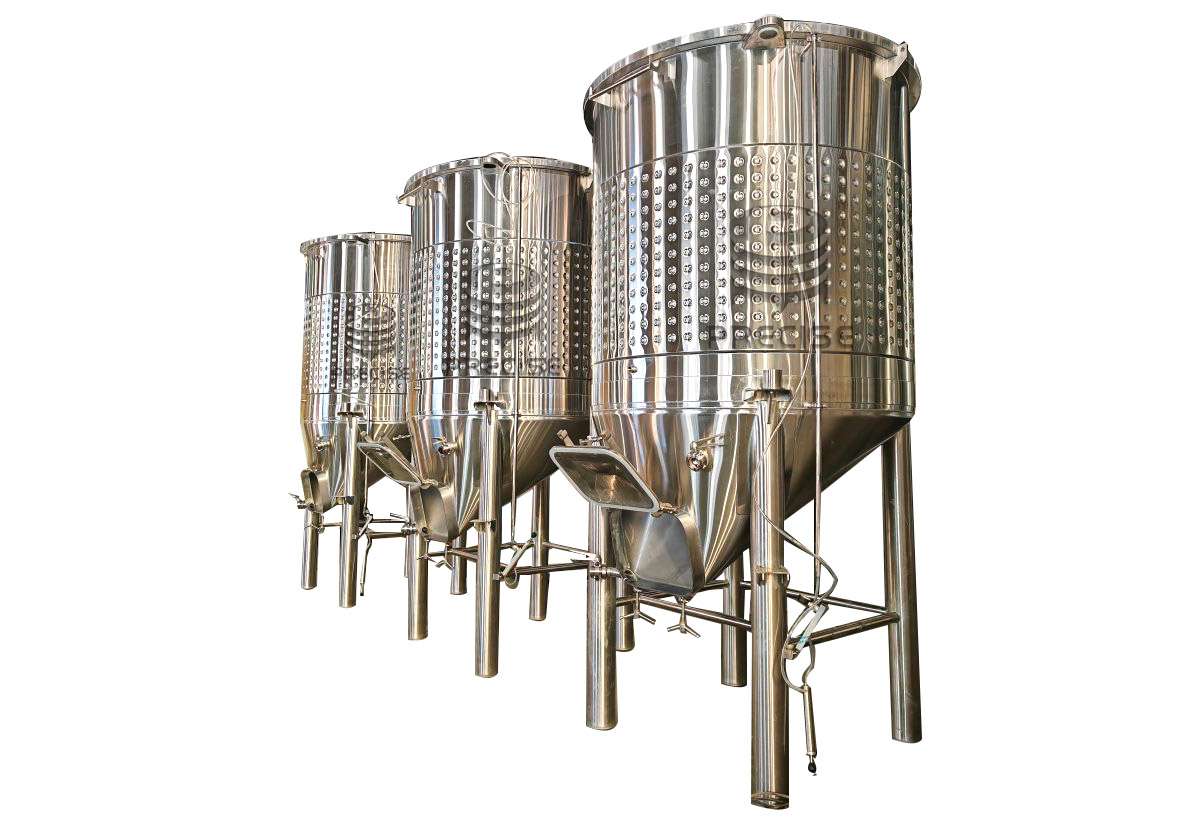

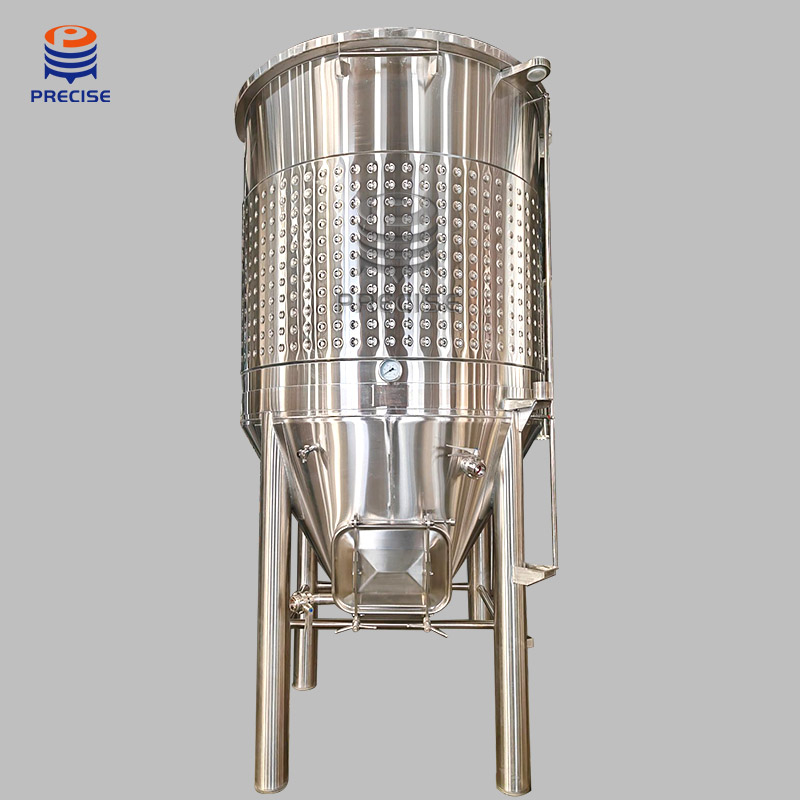

Offset open top wine tank

Offset open top wine tank is widely used for red wine fermentation, It has big sloped bottom 75% with round or rectangular mandoor, easy for discharging. High legs for putting bins or press under the tank, top is reinforced by stainless steel channel. Lid can be added if you want to use it for wine storage .

Availability:

Quantity:



Inquire

Product Description

Offset open top wine tank

Features:

Material: SS304 /SS316

Surface: Inner 2B, outside brushed oil, all welds are passivated and polished; inside welds are ground. Polished is optional

High legs can be customized as per bins’ height

Top is reinforced by stainless steel channel.

Lid is optional, to work as closed storage tank.

2 sections jacket on tank body & bottom controls the temp perfectly.

*Structure: Open top /Cylinder body/Slope bottom/Side jacket /Bottom jacket/adjustable legs

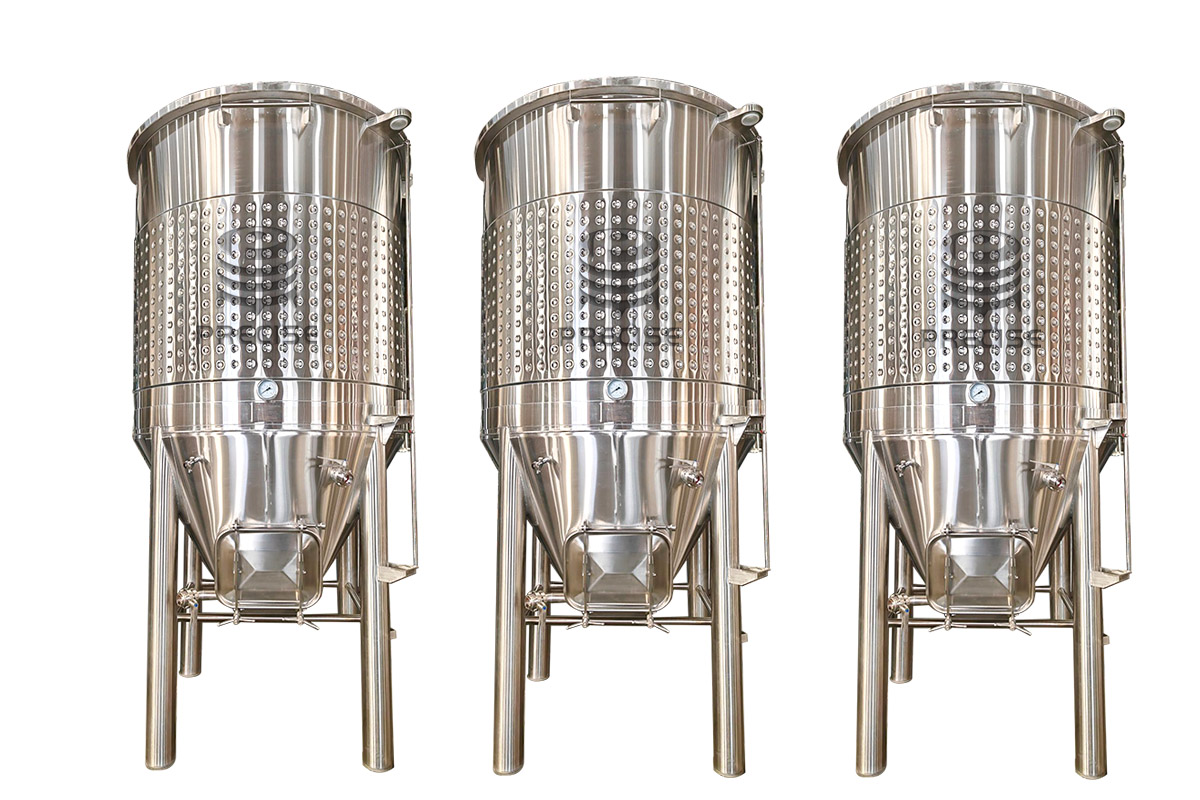

3-1

*Configuration:
●Bottom manhole	●Thermometer	● PT100 sensor port
●Racking valve	●Drain out valve	● Jacket inlet &outlet
● Sample valve	●Lifting lugs	●Lifting arm & lid ( optional)

锥形罐细节图

Type	Rated Volume	Total Volume (L)	Inner dia. (mm)	Total H (mm)	Shell H (mm)	Legs H (mm)	Cooling area (H)
POTWFT 2.0	2T	2700	1500	3200	1219	1000	700
POTWFT 2.5	2.5T	3430	1600	3400	1500	1000	700
POTWFT 3.0	3T	3900	1700	3400	1500	1000	700
POTWFT 5.0	5T	6600	2100	3800	1720	1100	1000
POTWFT 7.0	7T	8730	2100	4300	2250	1100	1000
POTWFT 10	10T	12800	2200	5200	3000	1100	1000
POTWFT 15	15T	20000	2800	5000	2800	1100	1500
