Cone Wine Fermenter

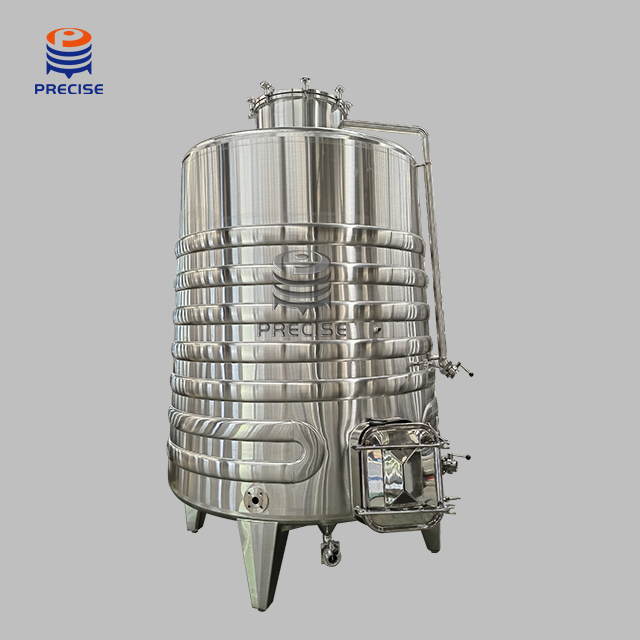

Cone wine fermenter is mainly used for red wine fermentation.

Compared with the traditional cylinder body tank, the design of the conical cylinder (narrow upper and wider at the bottom) makes the leather cap layer easier to press down, and suffers slow resistance during the floating process. It can also be used for the fermentation of white wine and the later storage and aging stages.

The cooling coil on the tank body can control the temperature of wine in the tank perfectly, and a large square manhole on the slope bottom is easy for removing grape skin and seeds.

Availability:

Quantity:



Inquire

Product Description

Cone Wine Fermenter

https://www.youtube.com/watch?v=r7xbm71Hgok

Features:

*Material: SS304 /SS316

*Surface: Inner 2B, outside brushed oil, all welds are passivated and polished; inside welds are ground. Polished is optional.

*Multi-purpose for wine fermentation and storage.

*Cone -hape shell have larger surface contact with must and it improves efficiency of cap submerging and breaking

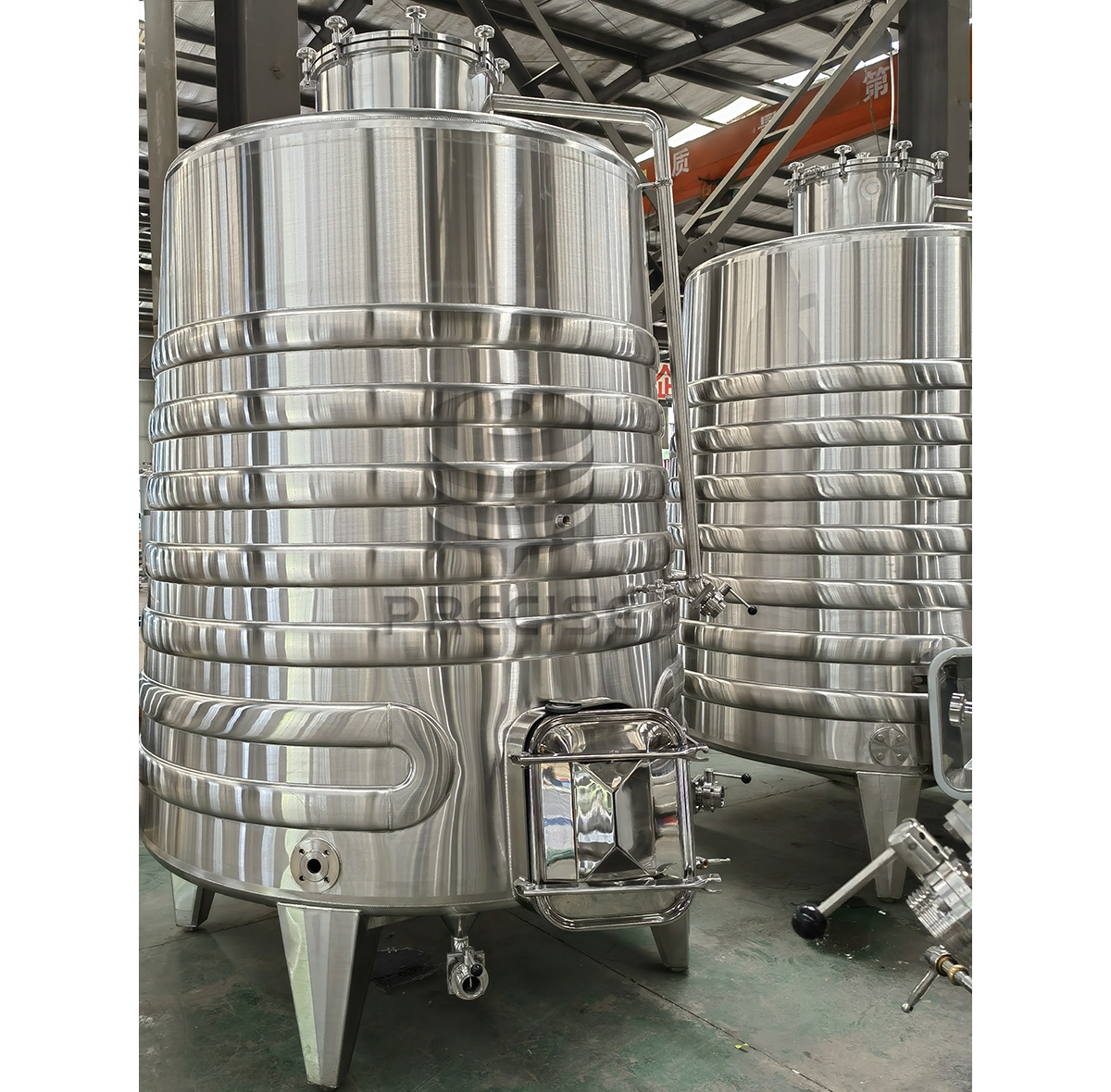

*Bottom rectangular manhole is easy for removing grape skins & seeds

*Customization is available.

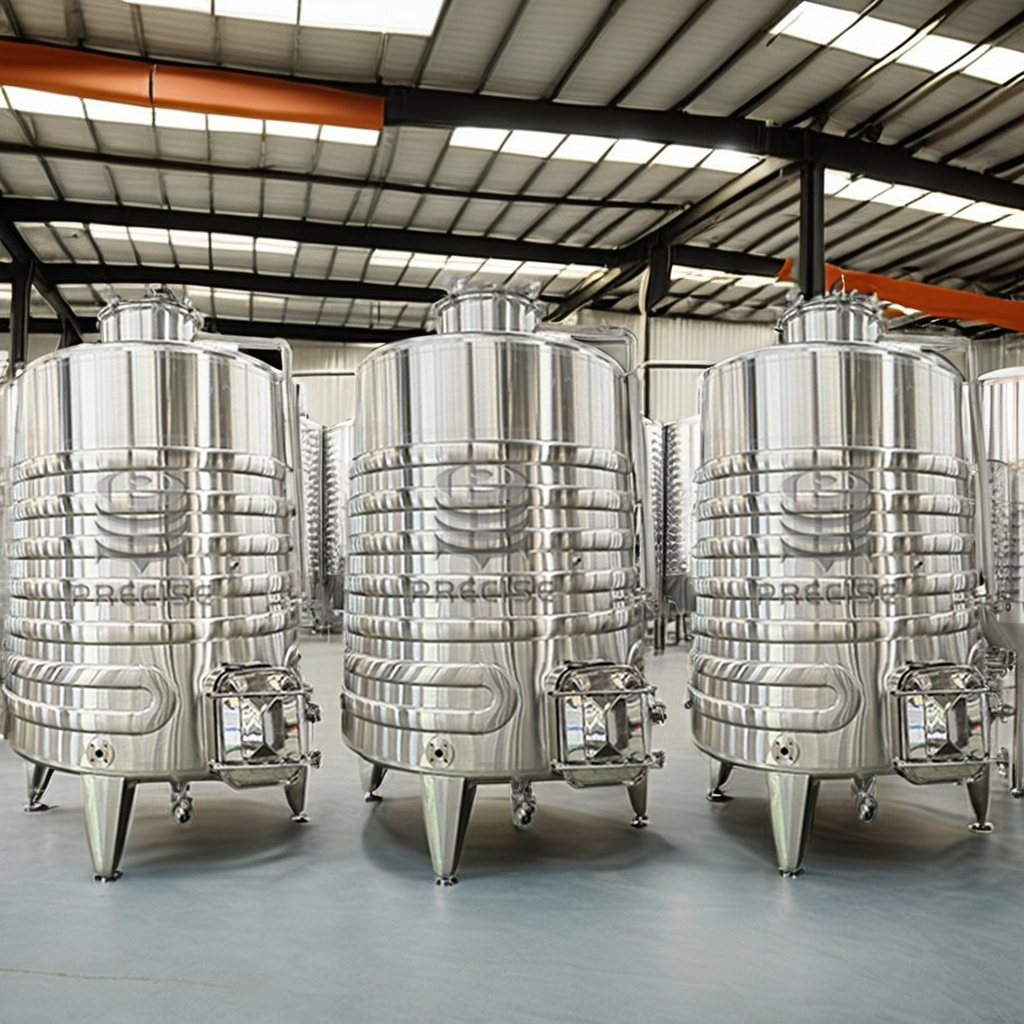

*Structure: Cone Top/Tank body/Slope bottom/Side cooling coil or jacket/adjustable legs. ai (1)

*Configuration:
●Top manhole	●Bottom rectangular manhole	● Side manhole
●Breathe valve	●Circulation pipe with sprinkle	●Sample valve Thermometer
●PT100 sensor port	●Racking valve	●Drain valve
●Ladder support	●Lifting lugs	●Cooling jacket inlet& outlet

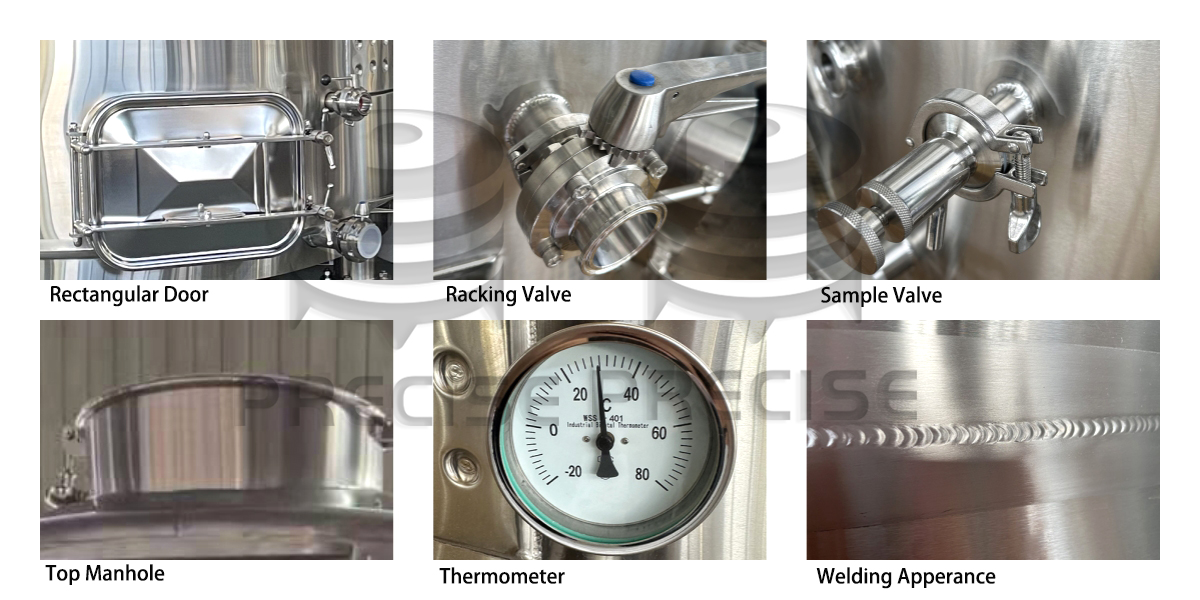

锥形罐细节图

Model	Capacity KL	Shell H mm	Total H mm	Cooling area H
PCWFT2	2KL	1500	2400	Cutomized
PCWFT3	3KL	1783	2900	Cutomized
PCWFT4	4KL	1874	3200	Cutomized
PCWFT5	5KL	2024	3200	Cutomized
PCWFT8	8KL	2400	3200	Cutomized
PCWFT10	10KL	2670	3210	Cutomized
PCWFT15	15KL	3150	3270	Cutomized
