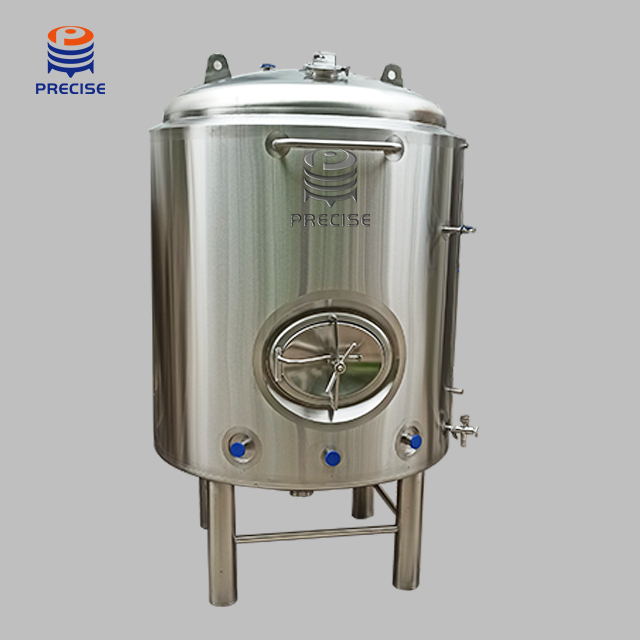

Bright Cider Making Tank

Bright cider making tank is for cider making, also equipped with cooling jacket and insulation, the bottom is usually dished, sometimes it’s conical. Our perfect design and production ensure the tank have nice performances of cleaning, CO2 supply, convenient to be connected with other parts such as ice water tank, temperature controlling and CIP system

Availability:

Quantity:



Inquire

Product Description

Features:

*Material: SS304

*Designing pressure: 0.25MPa, working pressure: 0.15MPa

*Dished top & bottom

*Dimple jacket on shell & bottom

*PU foam 75mm thick on top/shell/bottom

*Legs with supporting tubes

*Adjustable feet

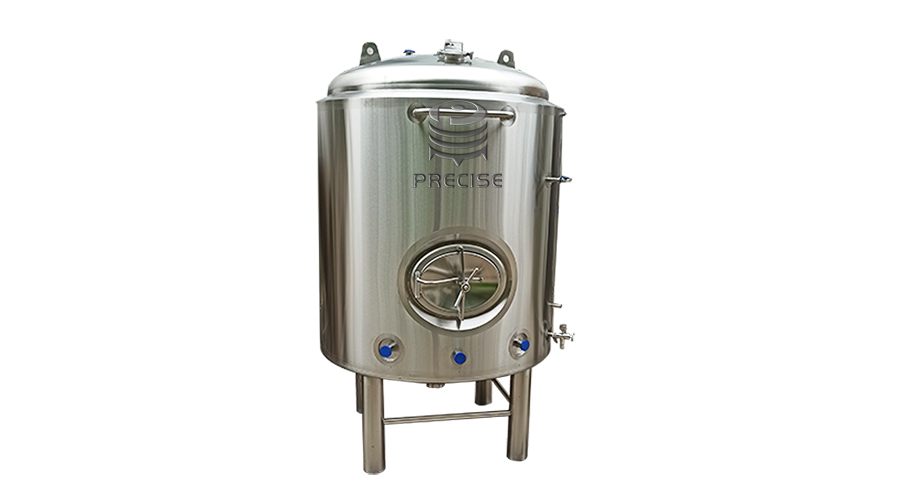

清酒罐1

*Configuration:
●Round manhole on the top	●Elliptical manhole on the front side	●Outlet with butterfly valve
●Glycol water inlet/outlet	●Breathing valve	●CIP ball
●Pressure gauge	●Level indicator	●Thermometer
●Sampling valve	●Lifting Lugs	●Connection standard can be ISO or DIN

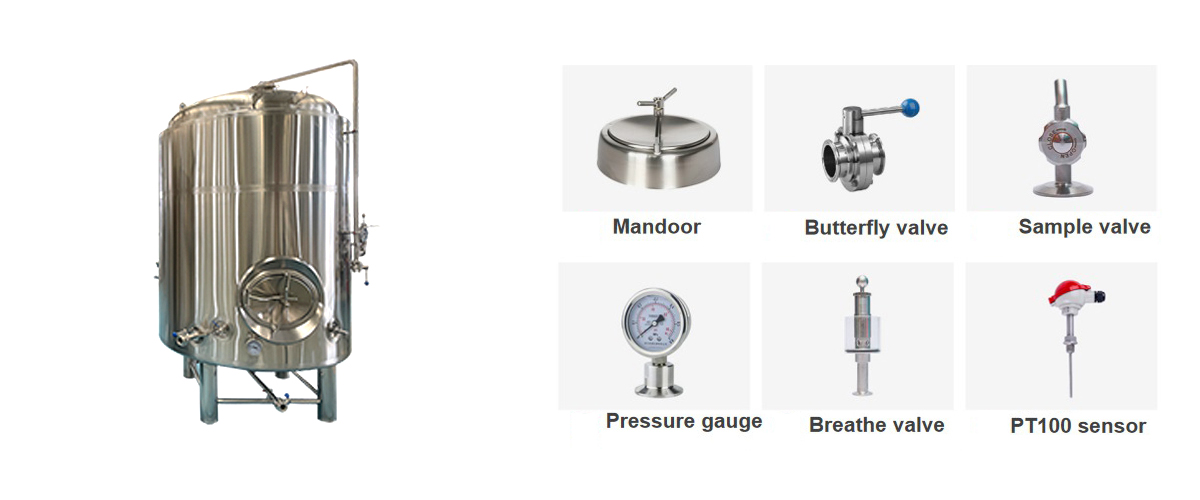

清酒罐细节1

Model	Volume:	ID (mm)	OD (mm)	Shell H(mm )	Total H(mm)	Pressure
PBBT 0.5	500L	800	950	1000	1900	0～0.35
PBBT5BBL	5BBL	890	1040	990	1900	0～0.35
PBBT7BBL	7BBL	990	1140	990	2200	0～0.35
PBBT1	1000L	1000	1150	1220	2250	0～0.35
PBBT10BBL	10BBL	1090	1240	1220	2286	0～0.35
PBBT15BBL	15BBL	1295	1445	1220	2413	0～0.35
PBBT2	2000L	1400	1550	1220	2450	0～0.35
PBBT3	3000L	1500	1650	1500	2800	0～0.35
PBBT5	5000L	1700	1850	2250	3800	0～0.35
PBBT6	6000L	1900	2050	2250	3800	0～0.35
PBBT8	8000L	2000	2150	2440	4500	0～0.35
PBBT10	10000L	2050	2200	3200	4900	0～0.35

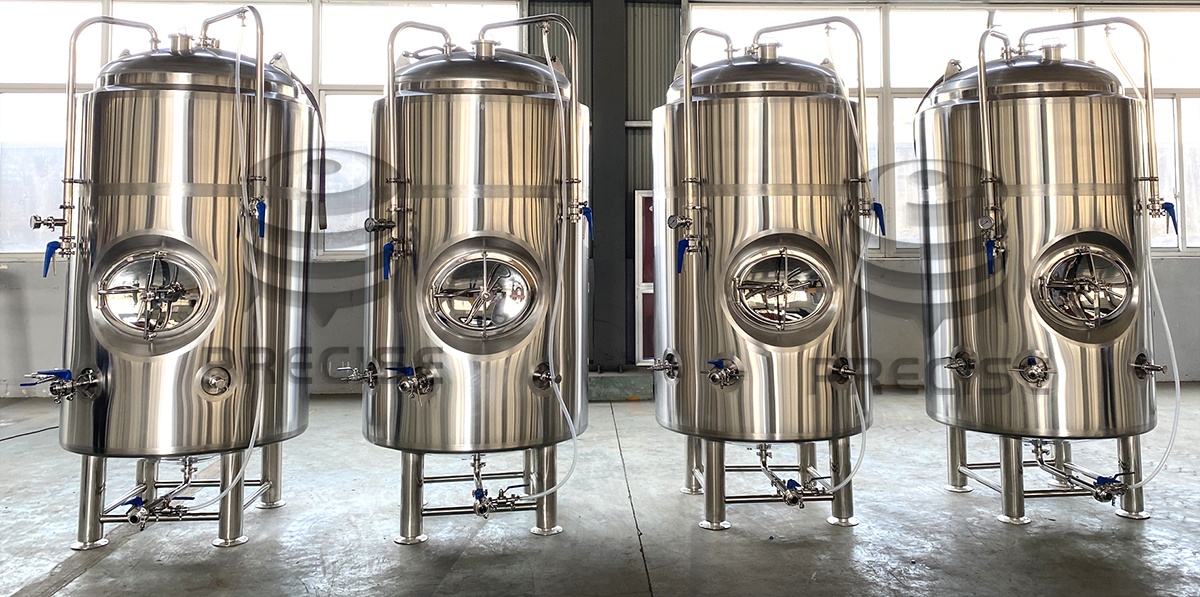

10BBL清酒罐

版本-18-3 H46d6f3c64a47451fbbbacbde432ff931v

1703138219574

Related Products

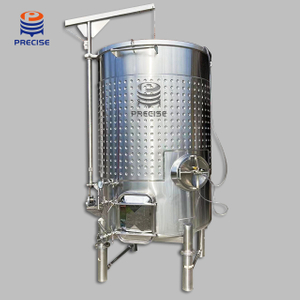

Variable Capacity Cider Making Tank
