Beer Fermentation Tank

Beer Fermentation Tank is suitable for small beer system, especially for bar, hotel and other craft beer brewing. The cold wort comes in and out of the bottom of the tank and is inoculated with yeast for fermentation. Temperature and working pressure are controlled by glycol in jacket

Our beer fermentation tank is also equipped with advanced temperature and pressure control systems, ensuring optimal brewing conditions. Elevate your beer-making process with our innovative fermentation tank and experience the perfect brew every time.

Availability:

Quantity:



Inquire

Product Description

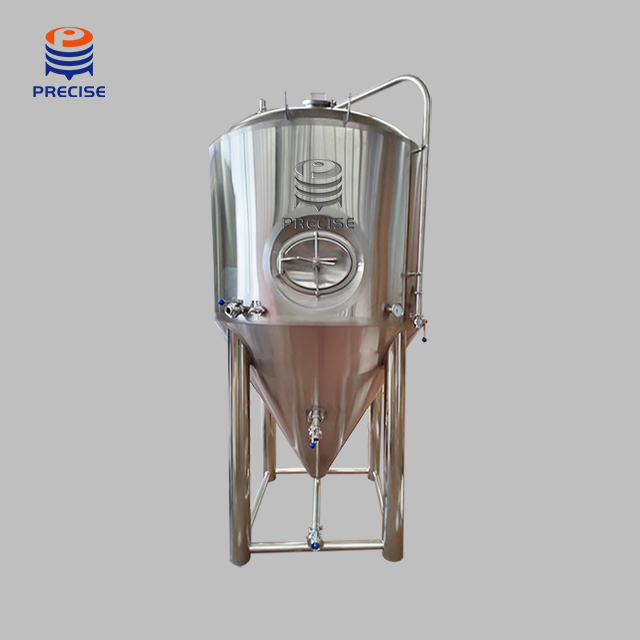

Beer Fermentation Tank

Features:

*Material:SS304

*Finish: Exterior brushed, interior polished<0.4um,welds grounded sanitary.

*Head space: 25%.

*Designing pressure: 0.2MPa, working pressure: 0.15MPa.

*Dished top, conical bottom 60 degree.

*Dimple jacket on shell and bottom.

*4 legs with adjustable feet.

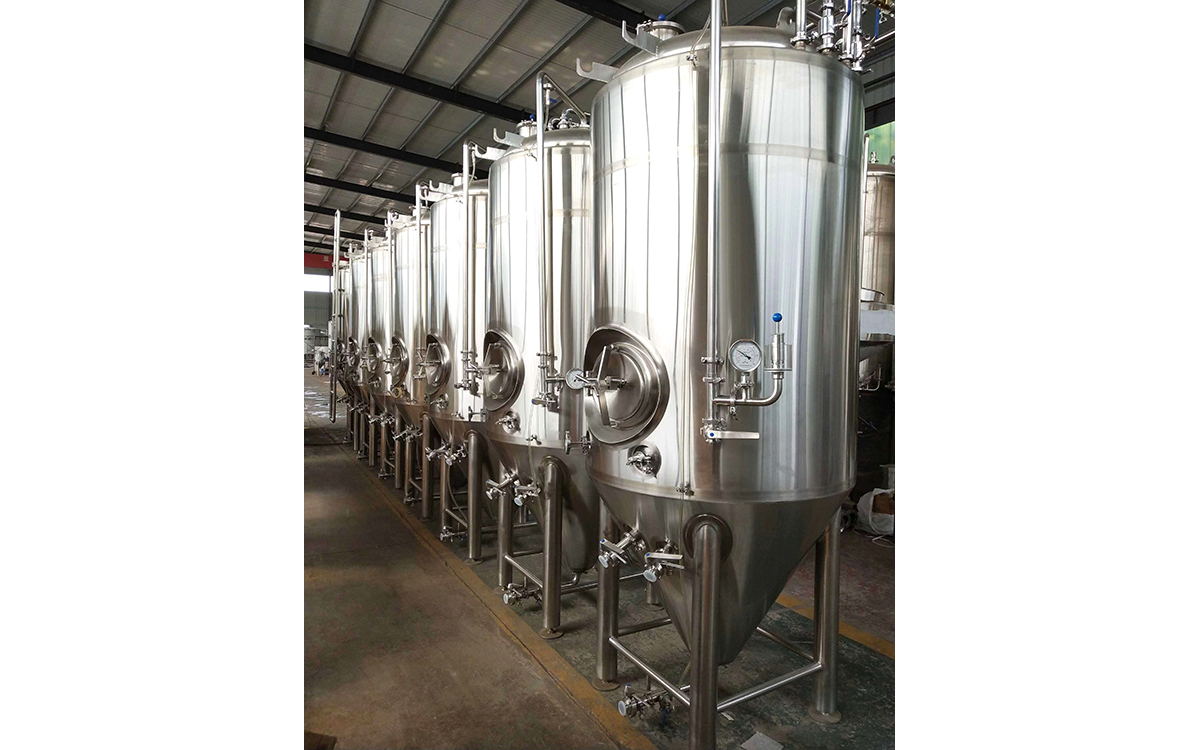

啤酒场景

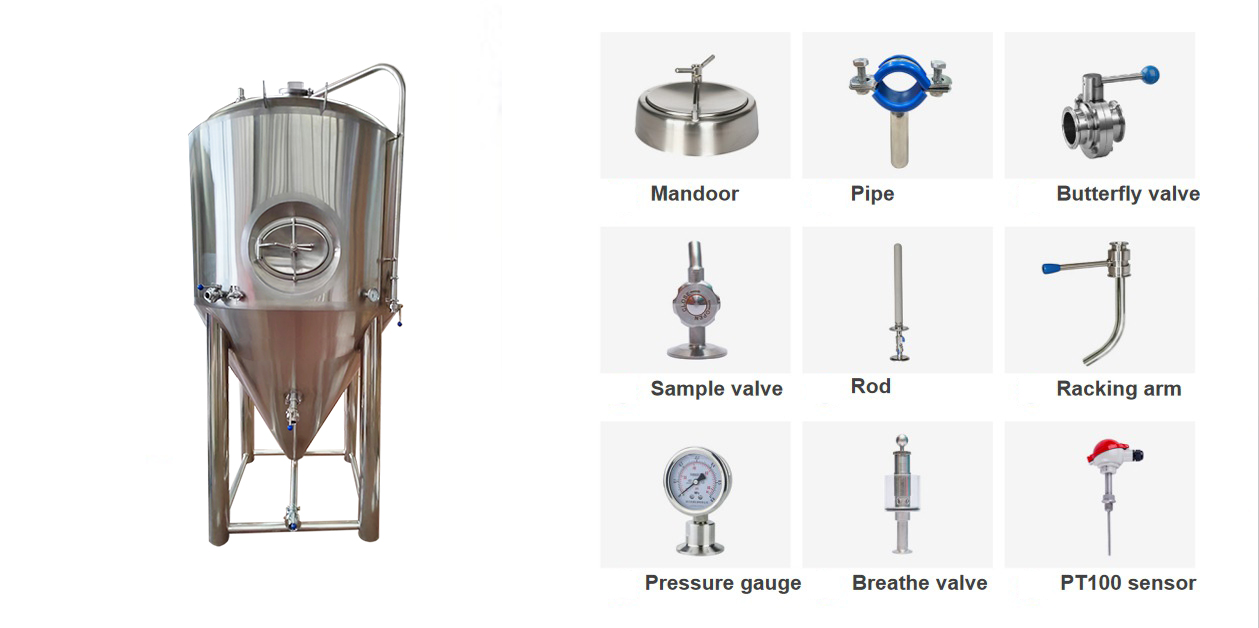

Configuration：

*Elliptical manhole 450*350mm.

*Outlet tube 2" with ferrule and butterfly valve.

*Temperature probe.

*Glycol water inlet/outlet NPT1".

*Safety valve 2".

*CIP ball and tubes with ferrule.

*Pressure vacuum relief valve with pressure gauge and butterfly valve.

*Racking arm.

*Sample valve.

*Top hop optional.

Model	Effective Volume	ID (mm)	OD (mm)	Shell H (mm)	Total H (mm)	Gross Volume
PBF2BBL	2BBL	600	720	750	1900	2.48 BBL
PBF3BBL	3BBL	700	820	800	2100	3.75BBL
PBF5BBL	5BBL	880	1040	820	2250	5.97BBL
PBF7BBL	5BBL	1000	1160	1220	2525	9.6BBL
PBF10HL	1000L	1100	1160	970	2570	1370L
PBF10BBL	10BBL	1000	1160	1500	3100	13.02BBL
PBF20HL	2000L	1200	1360	1830	3700	2670L
PBF20BBL	20BBL	1400	1560	1400	3300	26.32BBL
PBF30HL	3000L	1400	1560	1830	3860	3750L
PBF30BBL	30BBL	1400	1560	2250	4230	37.57BBL
PBF40HL	4000L	1600	1760	1750	3970	4880L
PBF40BBL	40BBL	1600	1760	2250	4465	50.5BBL
