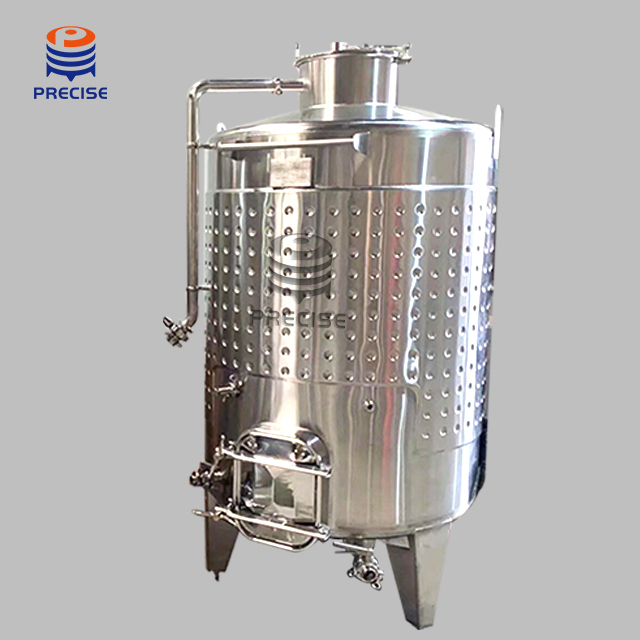

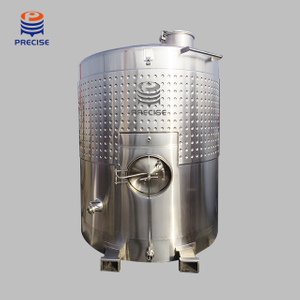

1000L Stainless Steel Pump Over Wine Fermenter

This Pump-over Wine Fermentation Tank is made of sanitary grade stainless steel, which has good strength and good resistance to corrosion and rust. It can be used for red wine fermentation, meanwhile can be also for white wine fermentation and classic wine storage.

The circulation system allows for efficient temperature control and oxygen management during the fermentation process, while the spray system ensures even distribution of nutrients and yeast throughout the tank.

With our dry red wine fermentation tank, winemakers can achieve exceptional results with minimal effort. Elevate your wine-making process with our state-of-the-art fermentation tank today.

Availability:

Quantity:



Inquire

Product Description

Pump Over Wine Fermentation Tank

https://www.youtube.com/shorts/EqIwZIC36sM

Features:

*Material: SS304/SS316

*Surface: Inner 2B, outside brushed oil, all welds are passivated and polished; inside welds are ground. Polished is optional

*Sprinkle and circle pipe pump juice from the bottom to top to make sure excellect maceration.

*Bottom large rectangular door makes sure it is easy to remove grape skin and clean the tank

*Cooling jacket helps control temperature perfectly.

*Filter grid mounted inside of tank to filter grape skin and seeds , Drainage Sump for further filtering.

*Customization is available.

*Structure: Cone top /Cylinder Body/ Slope bottom / Side jacket / Adjustable legs

*Configuration:
●Top round manhole	●Bottom square manhole	● Side oval manhole
●Breathing valve	●Circulating pipe with Sprinkle	●Sample valve
●Thermometer	●PT100 temperature sensing port	●Racking valve
●Drain out valve	●Ladder hanging	●Lifting lugs
●Jacket inlet &outlet

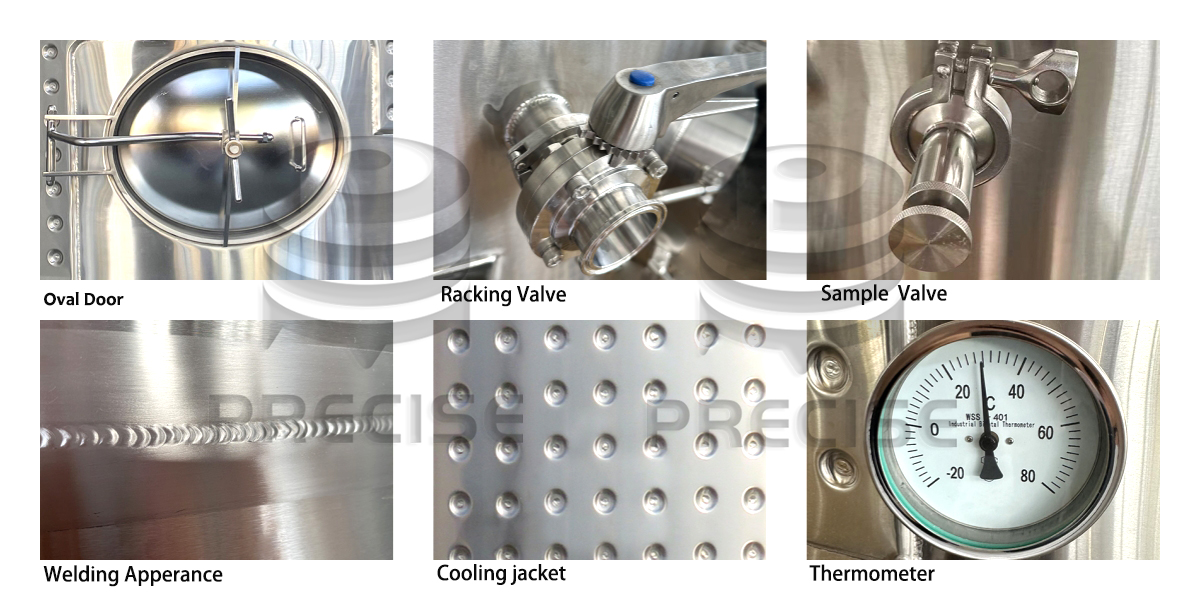

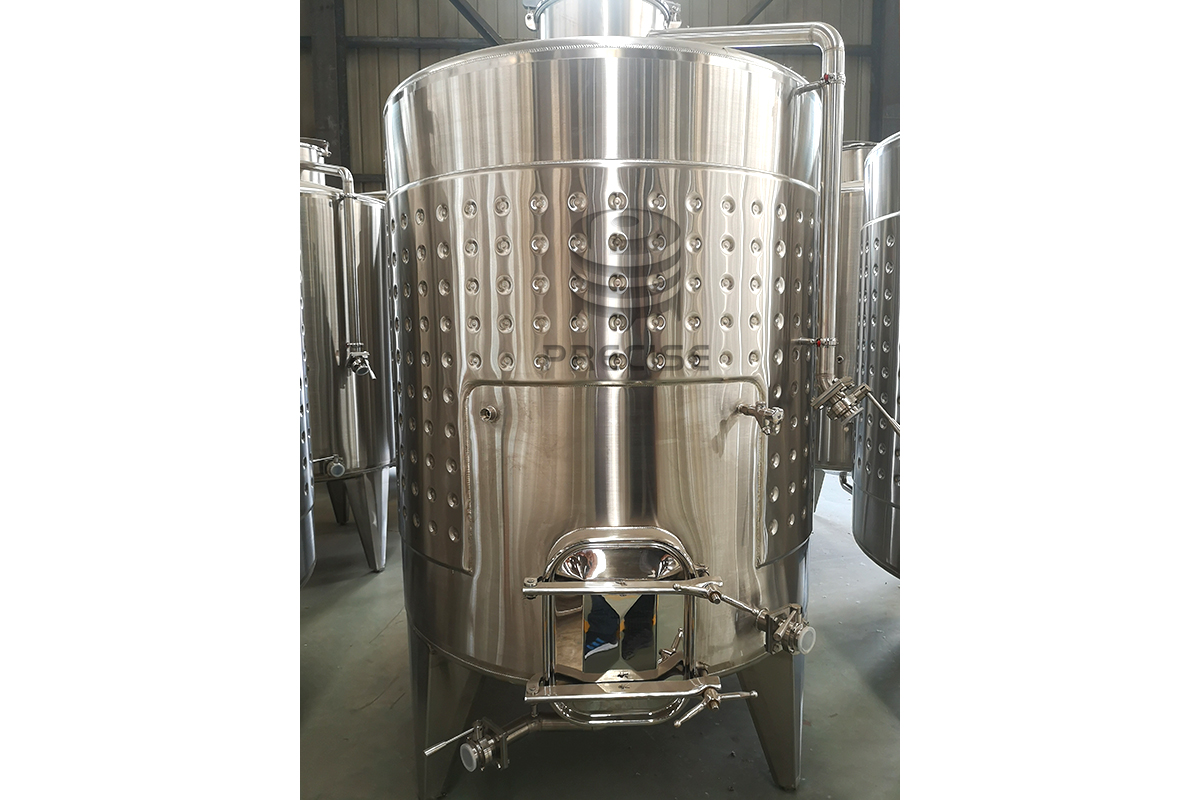

干红葡萄酒罐细节图

Model	Volume (lt) V	Inner dia.:（mm）	Total High（mm）	Shell High （mm）	Legs High (mm)	Cooling area(m2)
PWFT1	1000	930	2200	1500	350	1.4
PWFT1.5	1500	1100	2300	1500	350	1.4
PWFT2	2000	1270	2600	1610	350	2.2
PWFT2.5	2500	1270	2900	2000	350	2.6
PWFT3	3000	1400	2900	2000	350	3
PWFT4	4000	1600	3100	2000	350	4
PWFT5	5000	1600	3700	2440	350	5
PWFT10	10000	1900	5050	3660	350	6
PWFT15	15000	2000	5950	4880	350	12
PWFT20	20000	2230	6100	5110	350	15
PWFT25	25000	2650	5600	4500	350	18
